6.2 Create Catalog for Clean Zone

Create Glue Data Catalog for Clean Zone

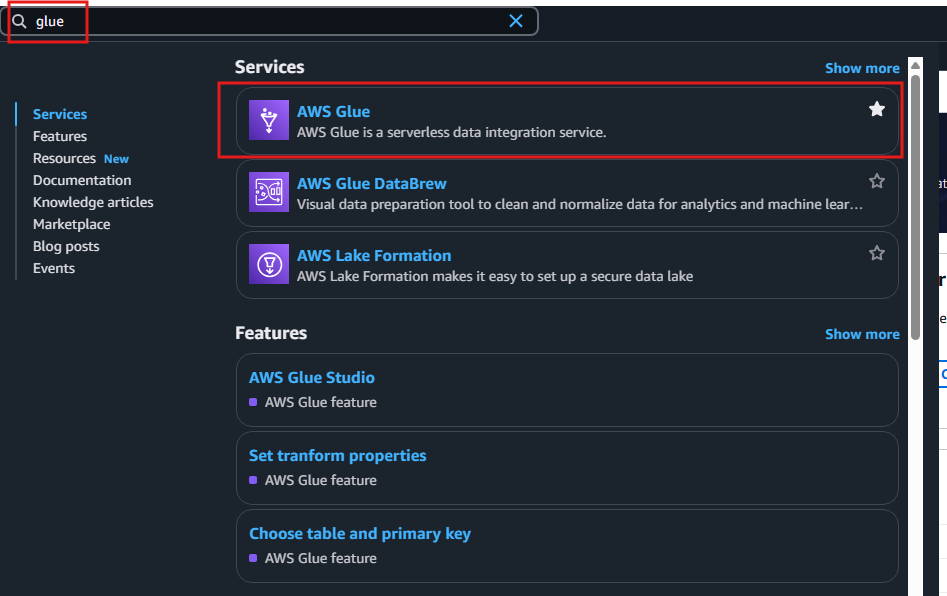

1. Access the Amazon Management Console
   • Search for the Glue service
   • Select Glue from the search results

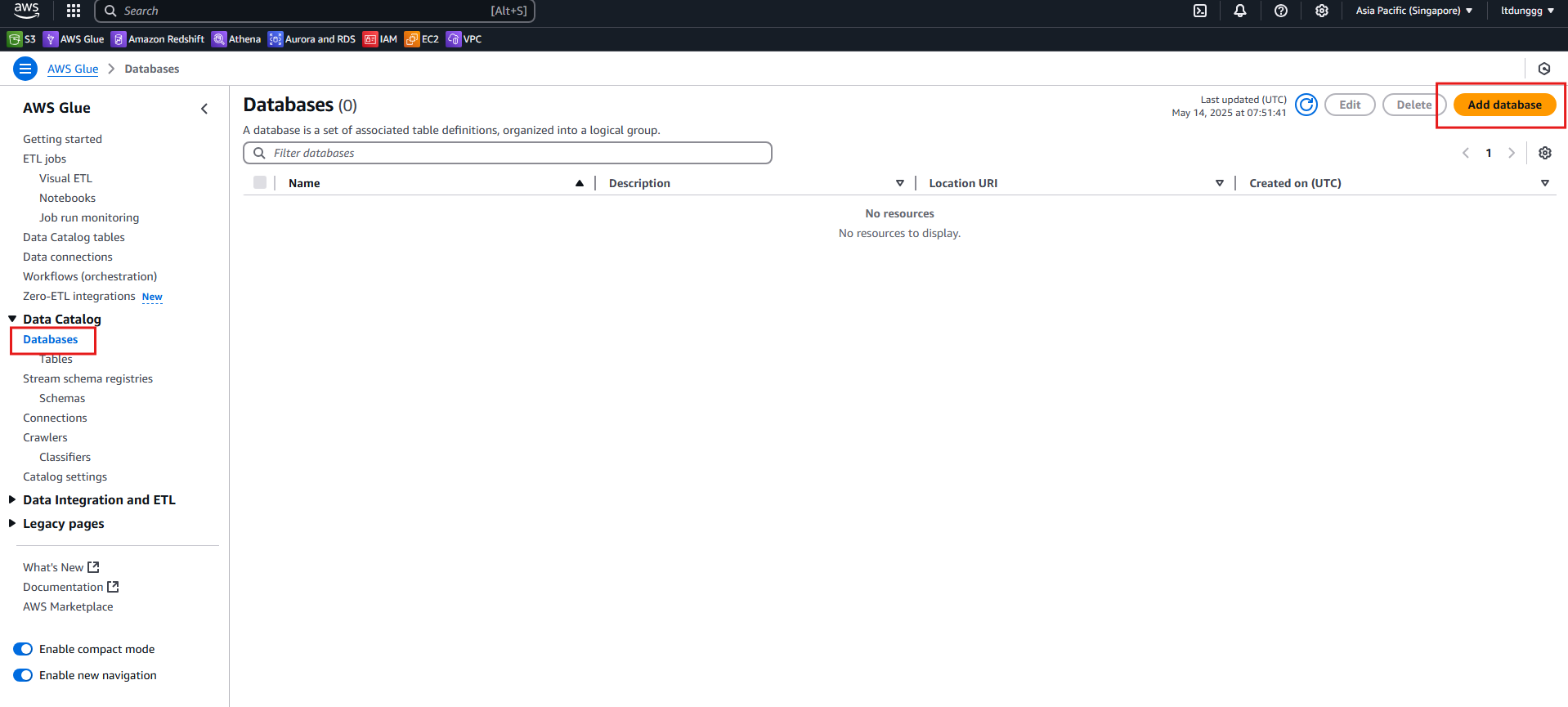

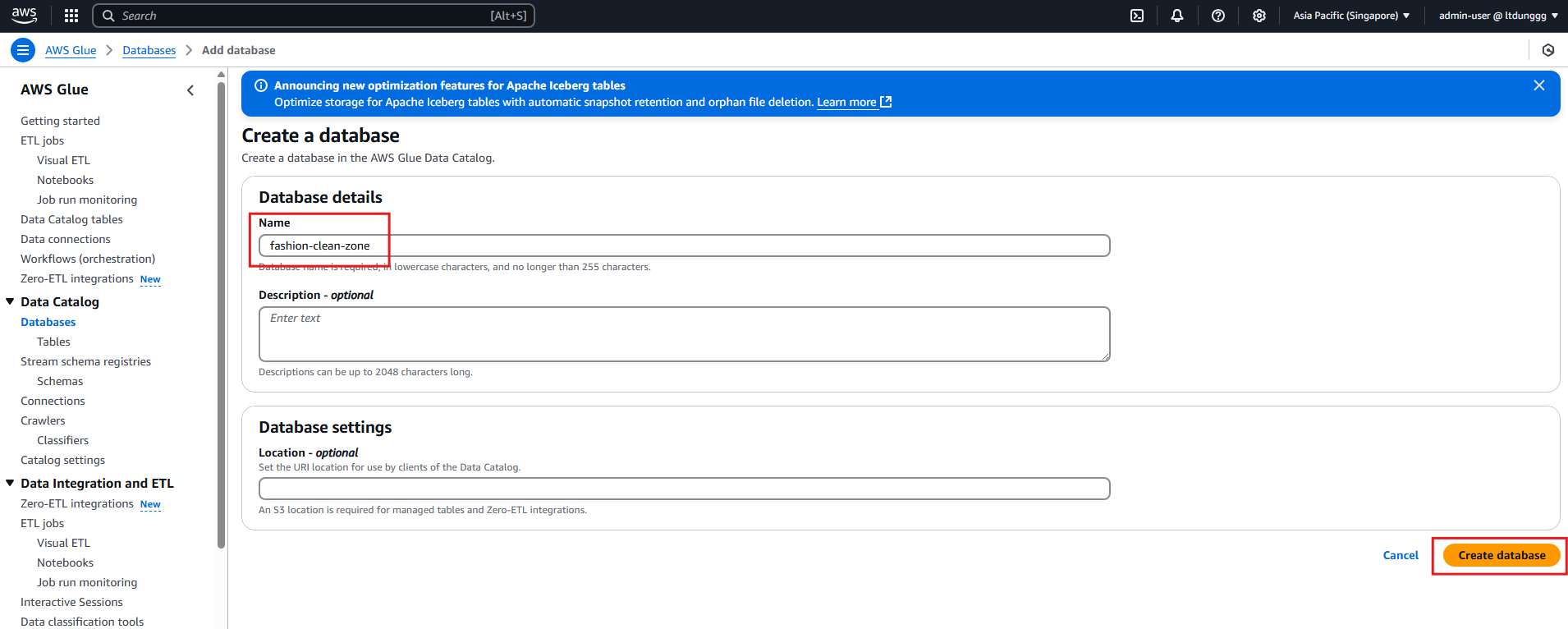

2. Create a Database for the Glue Data Catalog
   • In the Glue Data Catalog section, select Databases then choose Add database
   • Enter the database name as fashion-clean-zone
   • Click Create

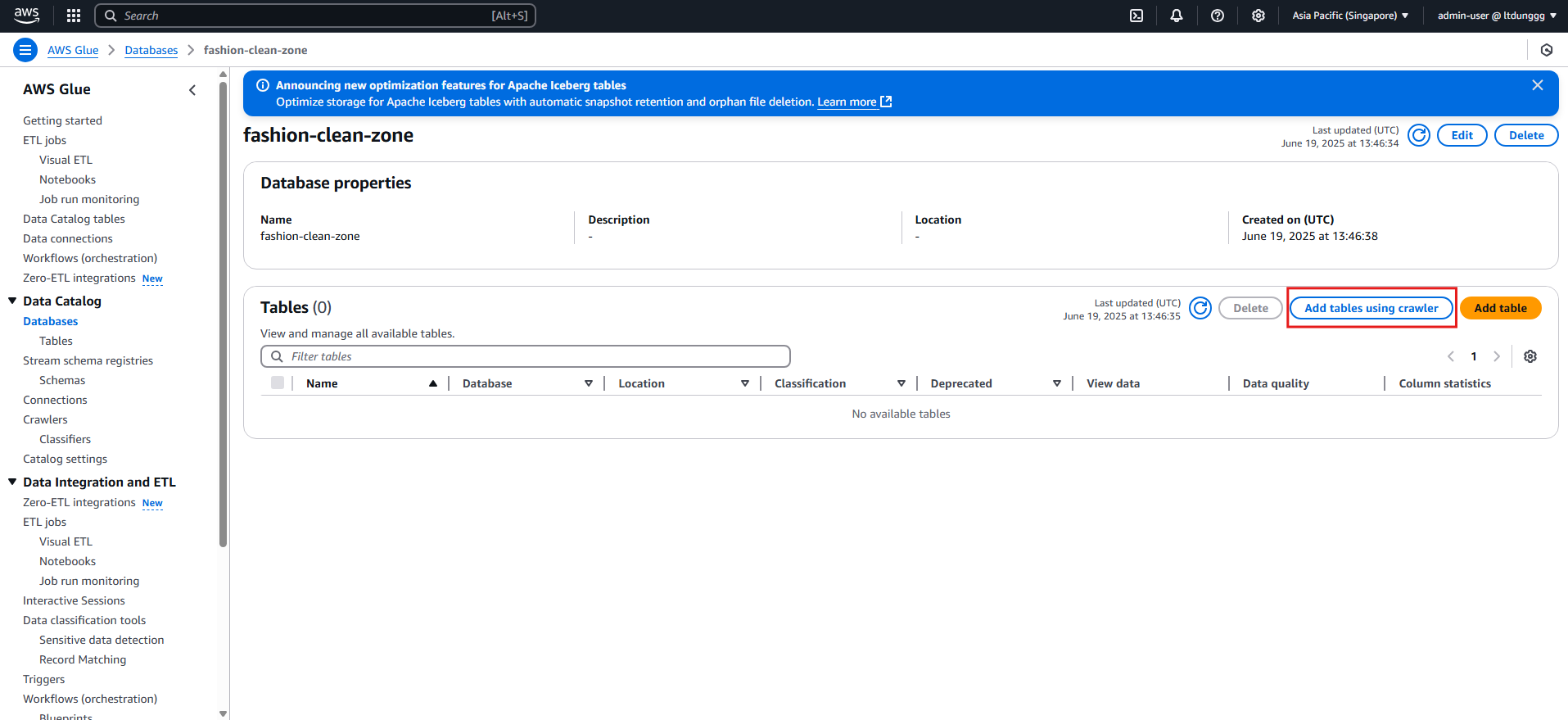

3. Create a table for the Glue Data Catalog
   • Click on the fashion-clean-zone database you just created
   • Select Add table then choose Add tables using a crawler

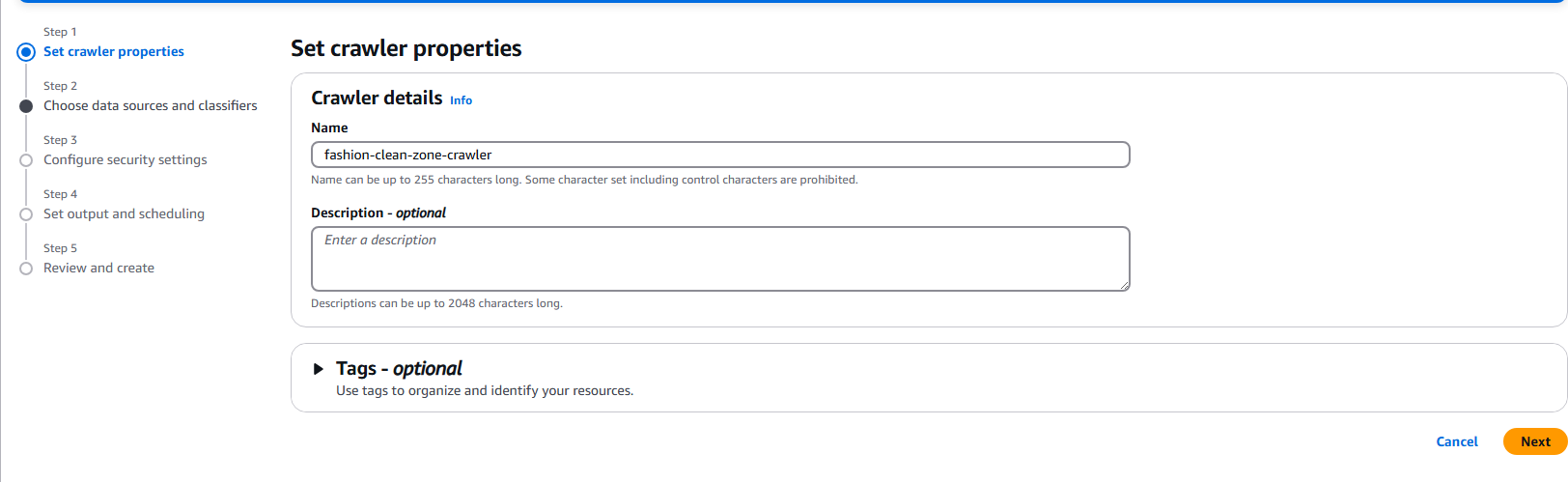

4. In the crawler properties section
   • Enter the crawler name as fashion-clean-zone-crawler
   • Click Next

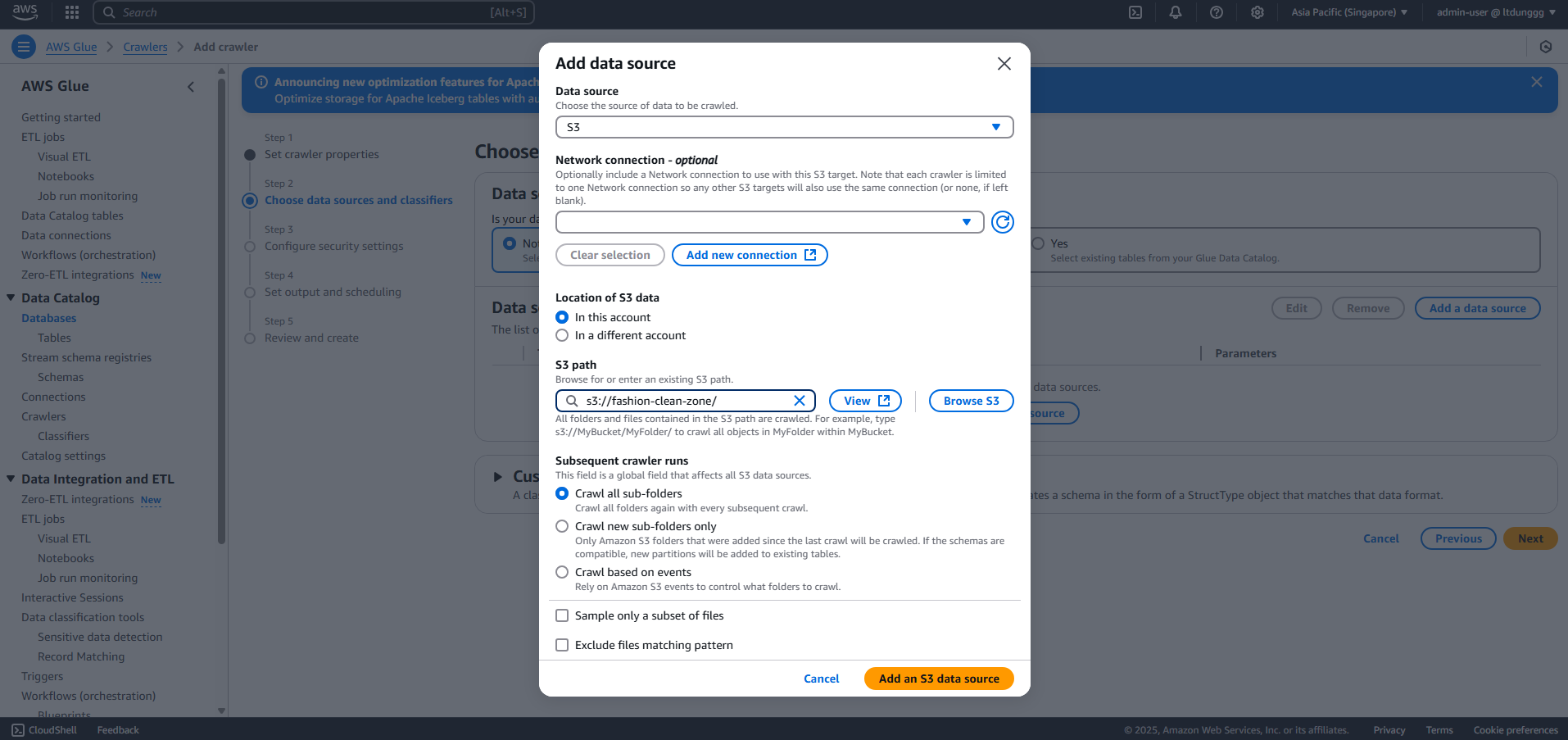

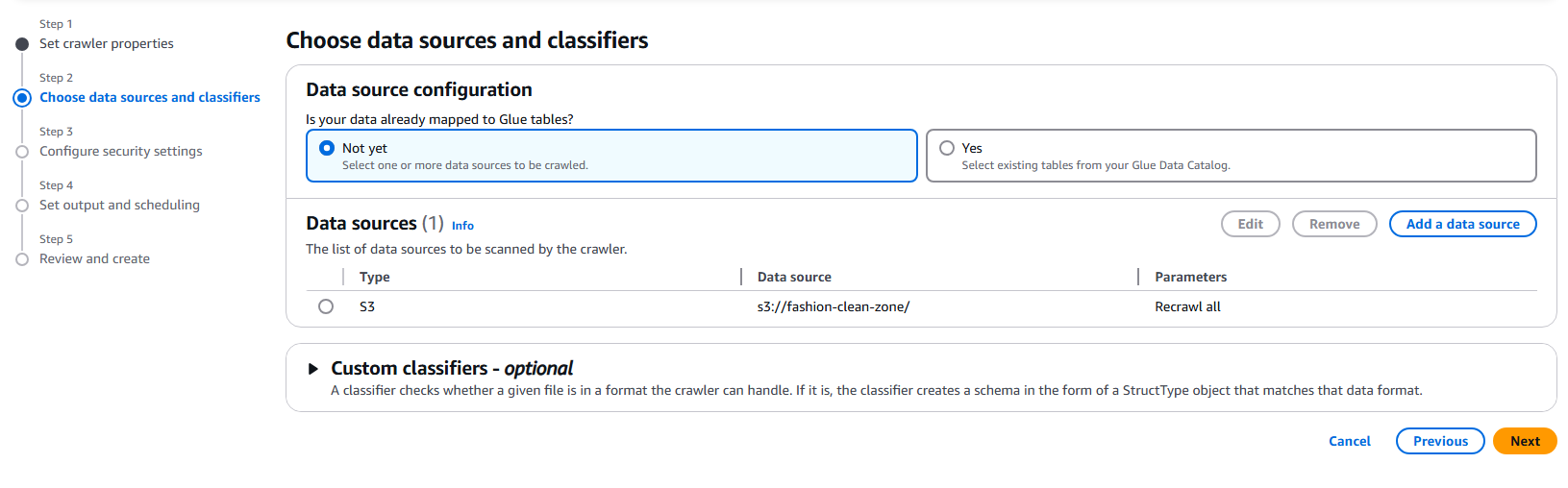

5. Select the data source and click Add a data source
   • Choose S3 then click Browse
   • Select the fashion-clean-zone bucket then click Add
   • Click Next

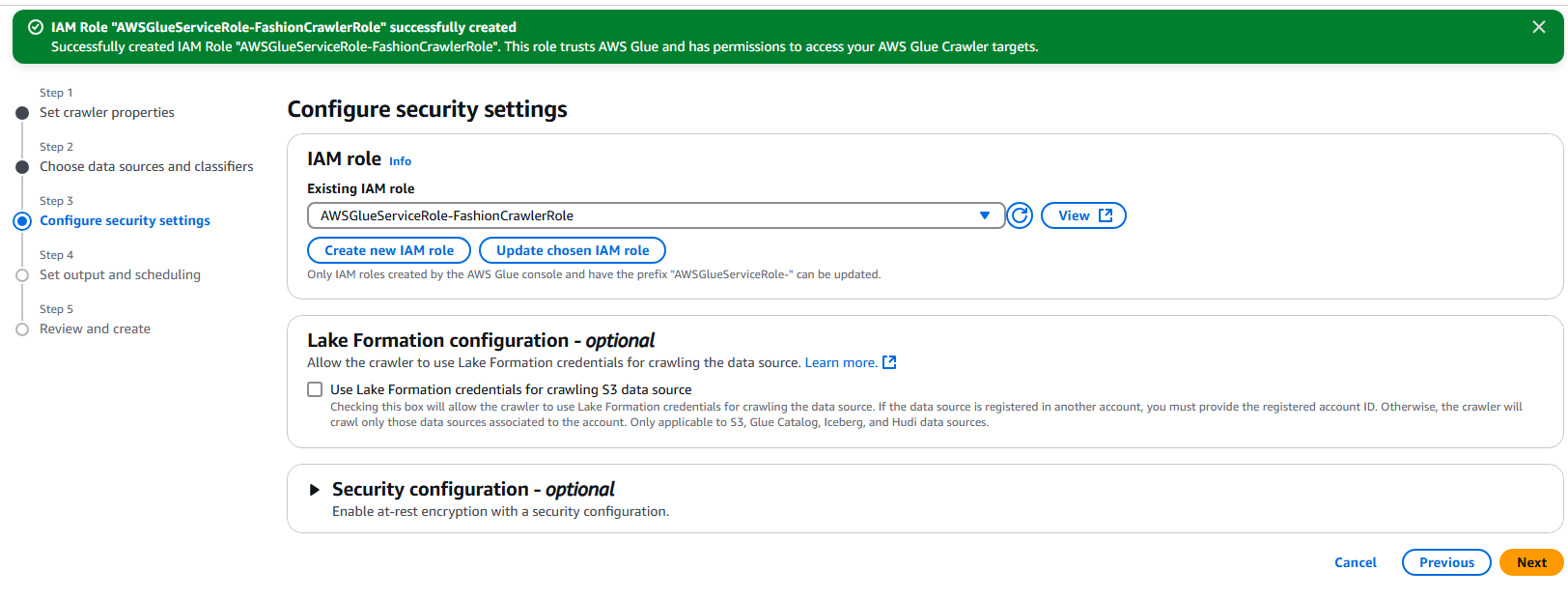

6. In the IAM role section
   • Select Create an IAM role
   • Enter the role name as AWSGlueServiceRole-FashionCrawlerRole
   • Click Next

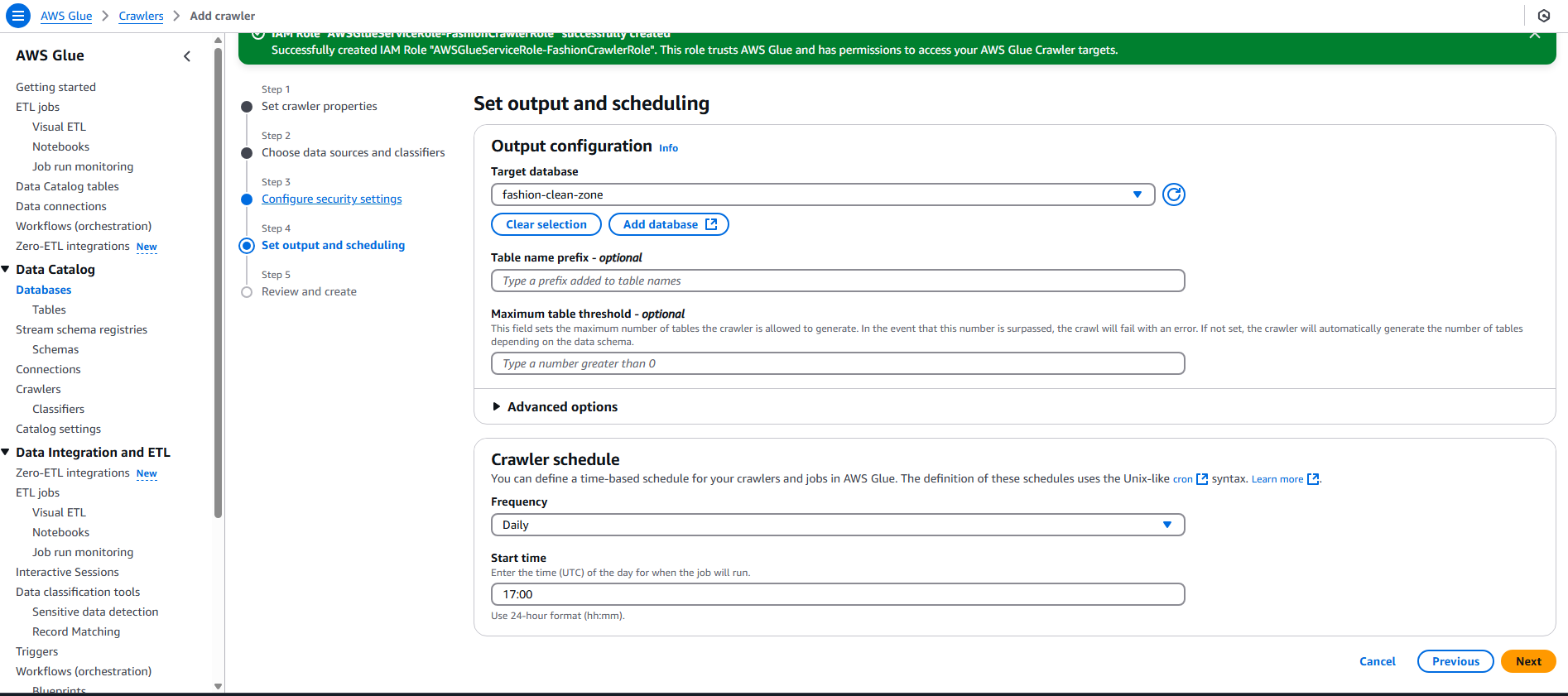

7. In the Set output and scheduling section
   • Target database: Select the fashion-clean-zone database
   • Frequency: choose Daily and enter 17:00 (UTC is 00:00 Vietnam time)
   • Click Next

8. In the Review section
   • Click Finish

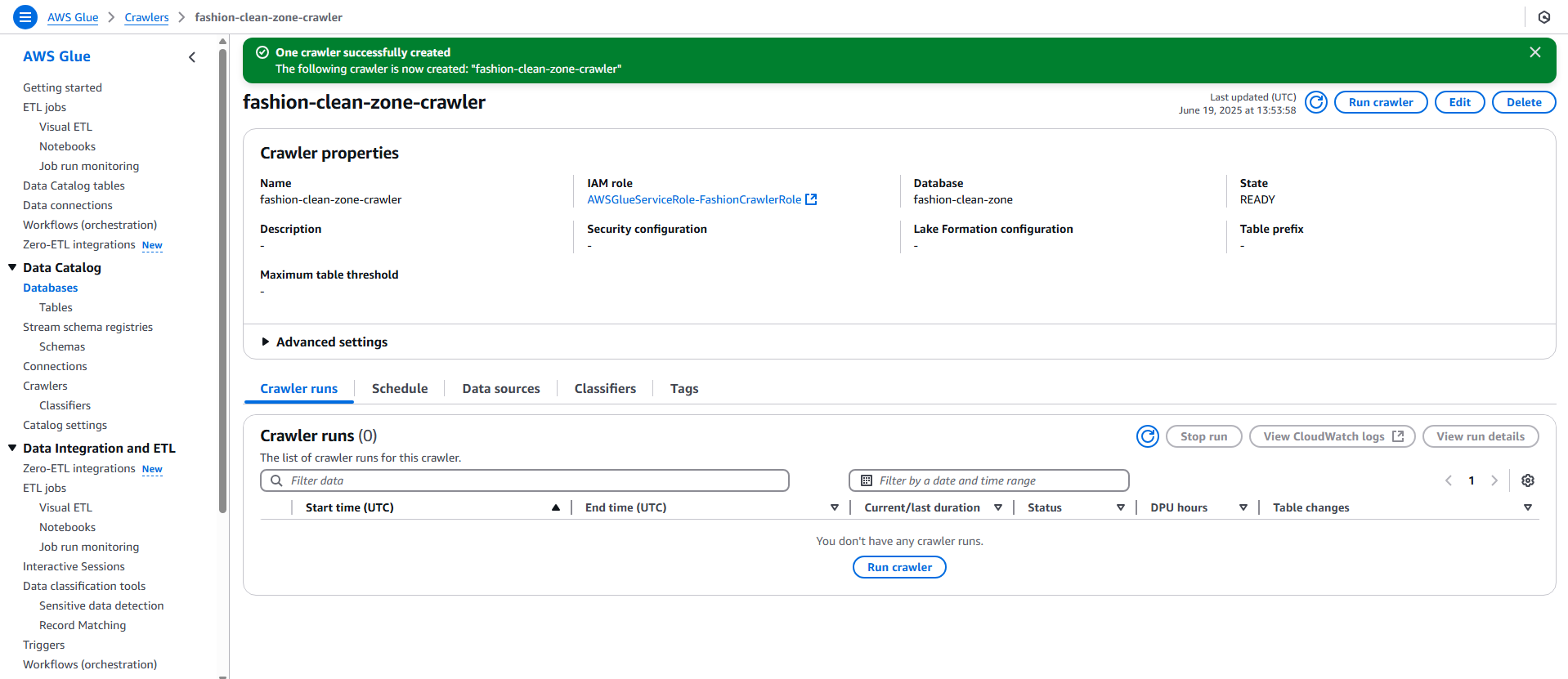

9. Select Run Crawler and wait for the crawler process to complete. This process will take about 1 minute.

Check Results with Athena

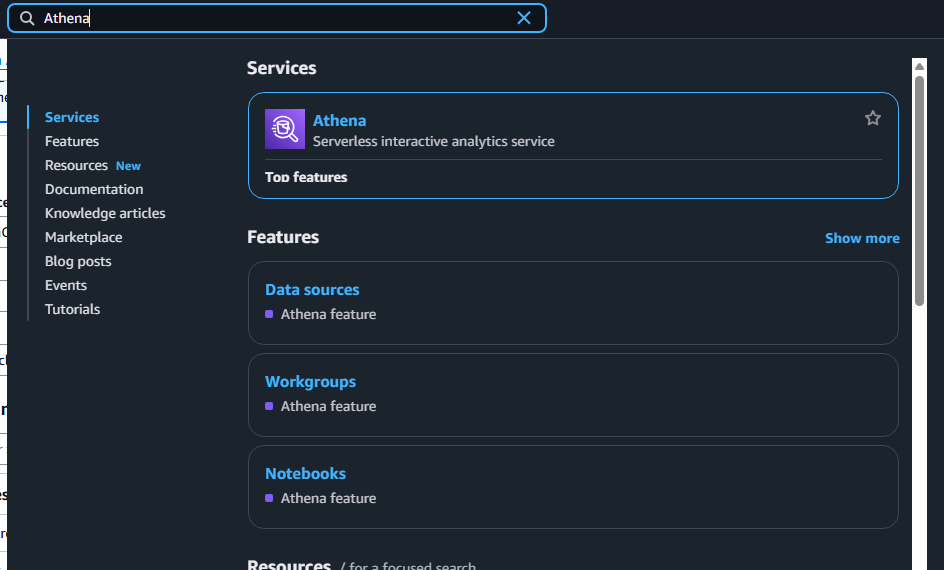

1. Access the Athena service from the AWS Management Console.

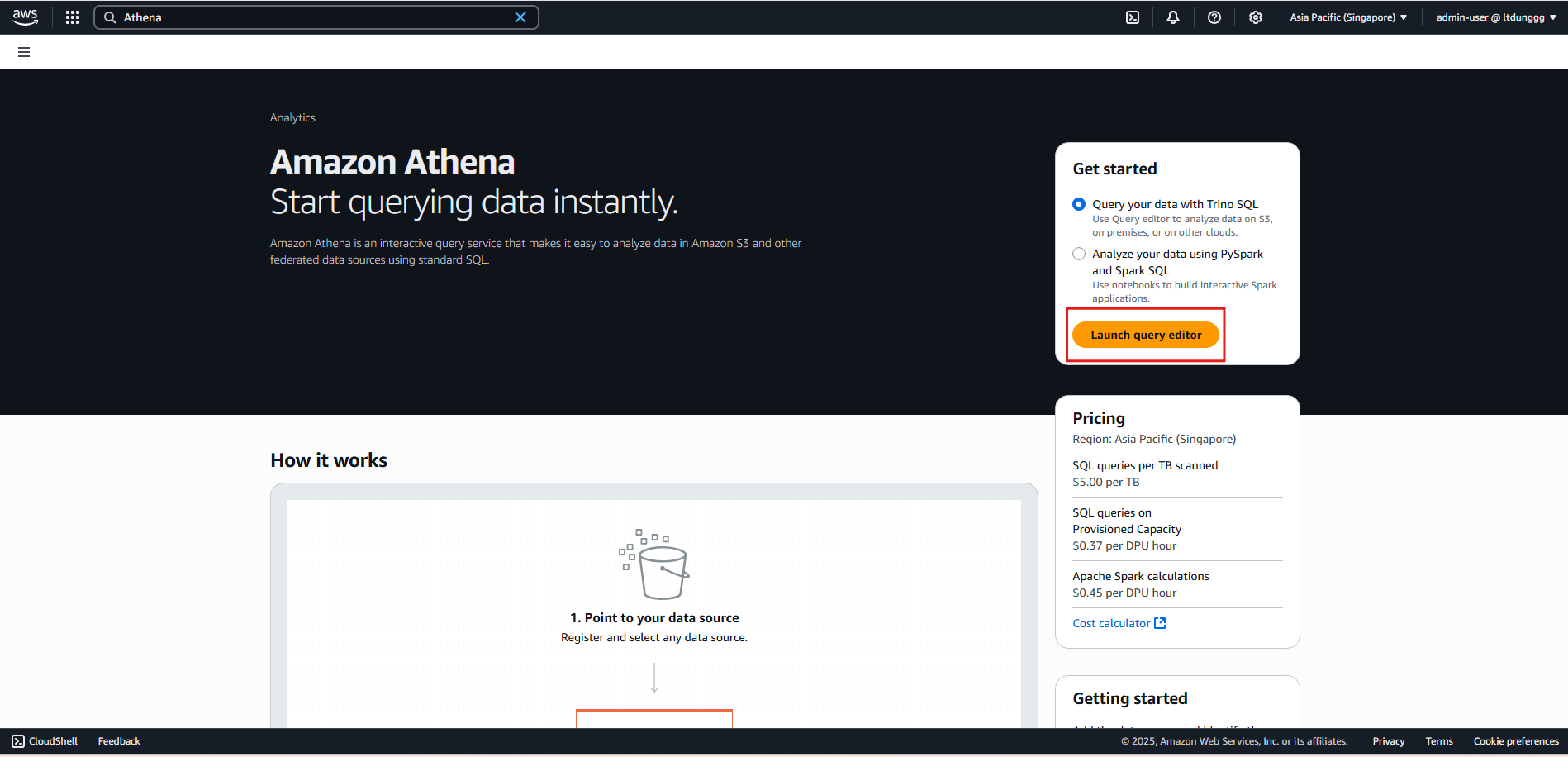

2. Click Launch Query Editor

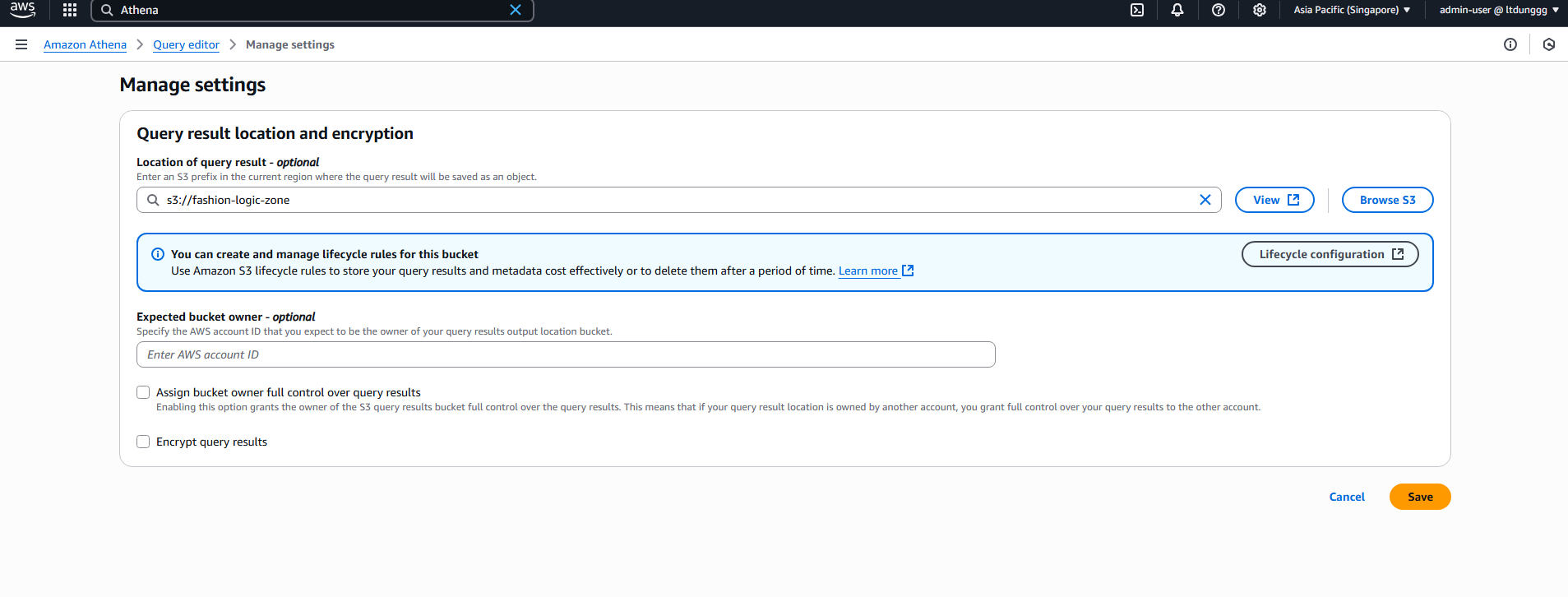

3. In the Query Editor interface, click Settings and then Manage
   • Under Location of query result, click Browse S3 and select the fashion-logic-zone bucket
   • Click Save

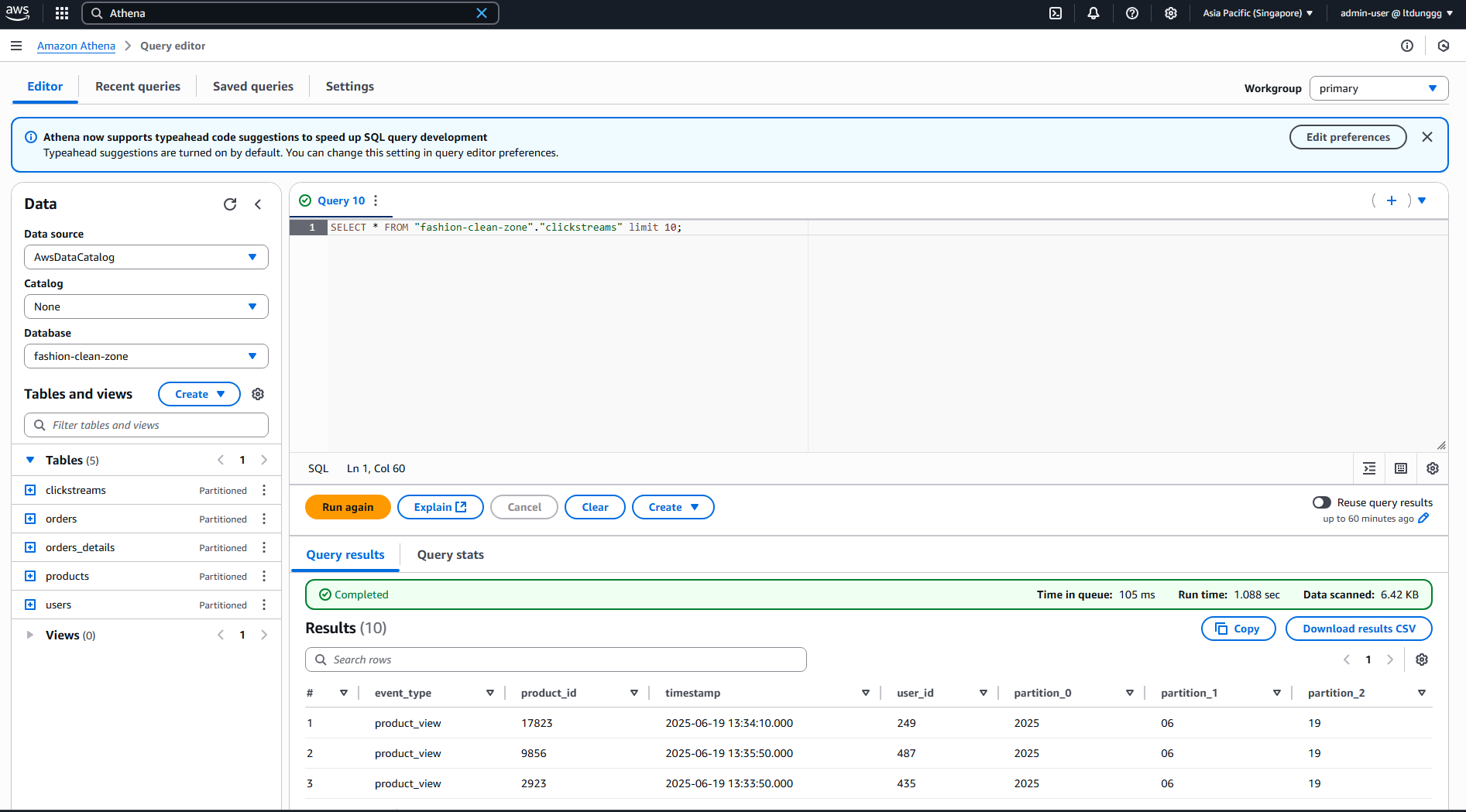

4. Return to the Editor section
   • On the left, select Data Source as AwsDataCatalog
   • Select the Database as fashion-clean-zone
   • You can now enter SQL queries to query the data. For example:

   SELECT * FROM "fashion-clean-zone"."clickstreams" limit 10;
